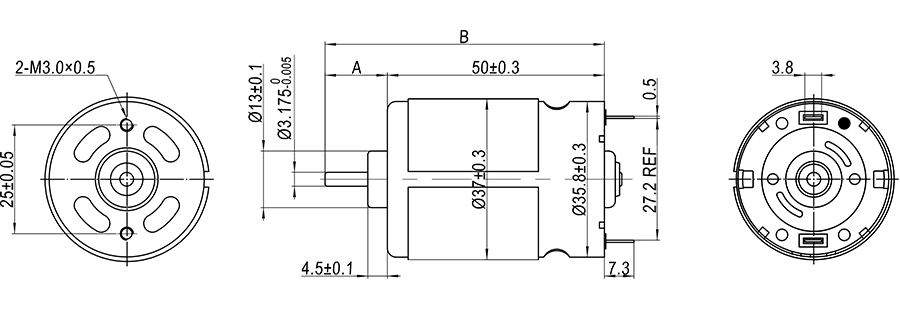

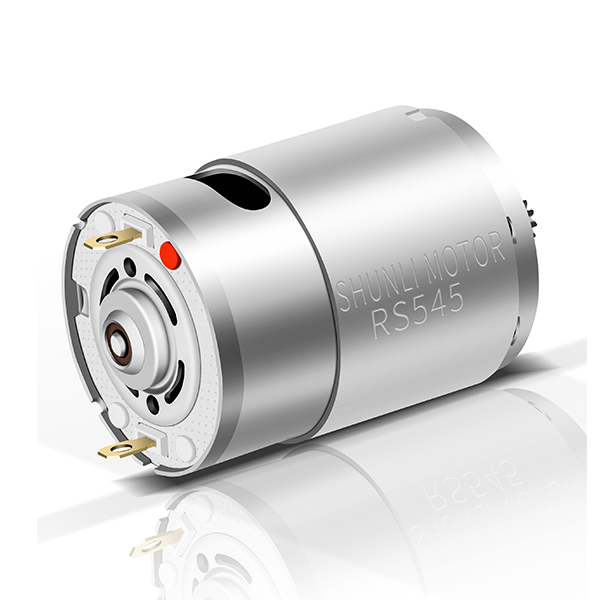

RS-540+545A+H
| 直流電機技術參數 | |||||||||||
| 直流電機型號 | 額定電壓(V) | 空載狀態 | 額定狀態 | 堵轉狀態 | |||||||
| 電壓范圍 | 標準值 | 轉速 | 電流 | 轉速 | 電流 | 扭力 | 功率 | 電流 | 扭力 | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-540H | 4552 | 6.0~12.0 | 12 VDC | 13500 | 0.62 | 11633 | 3.09 | 22.71/231.6 | 28.32 | 25.49 | 184.3/1880 |
| 23198 | 6.0~12.0 | 12 VDC | 3500 | 0.12 | 2898 | 0.58 | 14.87/151.7 | 4.51 | 2.79 | 86.5/882.3 | |
| RS-545H | 3153 | 6.0~12.0 | 12 VDC | 8000 | 0.28 | 6732 | 1.49 | 16.5/167.9 | 1161 | 7.9 | 103.9/1060 |
| 21116 | 6.0~24.0 | 24 VDC | 6600 | 0.12 | 5761 | 0.57 | 17.7/180.6 | 10.52 | 4.13 | 132.3/1350 | |
| 客戶定制 | 電機特性 | 電機應用 | ||
| 1. Length A, B | 1.Metal End Cap | 1. Cordless Power Tools | ||
| 2. Techincal Data | 2. Oil-impregnated Bearing | 2. Sewing Machine | ||
| 3. Flux Ring&Cooling Fan | 3. Precious Metal Brush/Carbon Brush | 3. Door Opener | ||
| 4. EMC/EMI Suppression | 4. Carbon Steel/Stainless Steel Shaft | 4. Vacuum Cleaner |
